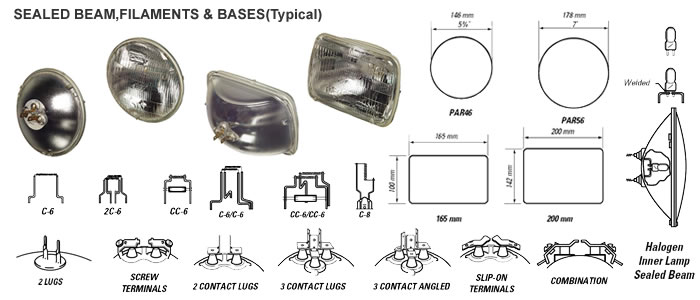

| SEALED BEAM LAMP SPECIFICATIONS | |||||
REFRENCE NO. |
DESIGN VOLTS |
DESIGN WATES OR AMPS |
APPROX. INITIAL MAX. BEAM C.P. |
BASE |
FILAMENT DESIGNATION |
| PAR46 BULB 146mm(5 3/4") DIAMETER | |||||
4019 |
6.2 |
30W |
1,200 |
Screw Terminals |
C-6 |
4013 |
6.4 |
25W |
800 |
Screw Terminals |
C-6 |
4535 |
6.4 |
30W |
95,000 |
Screw Terminals |
C-6 |
4531 |
12.5 |
40W |
30,000 |
Screw Terminals |
C-6 |
4435 |
12.8 |
30W |
75,000 |
Screw Terminals |
C-6 |
4412 |
12.8 |
35W |
11,000 |
Screw Terminals |
C-6 |
4412A |
12.8 |
35W |
8,800 |
Screw Terminals |
C-6 |
4413 |
12.8 |
35W |
1,100 |
Screw Terminals |
C-6 |
4419 |
12.8 |
35W |
1,600 |
Screw Terminals |
C-6 |
4436 |
12.8 |
35W |
60,000 |
Screw Terminals |
C-6 |
H5006 |
Hi 12.8 Lo 12.8 |
35W 35W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
4000 |
Hi 12.8 Lo 12.8 |
37.5W 60W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
4001 |
12.8 |
37.5 |
SAE Specifications |
2 Contact Lugs |
C-6 |
4040 |
Hi 12.8 Lo 12.8 |
37.5W 60W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H7612 |
12.8 |
37.5W |
15,000 |
Screw Terminals |
C-6 |
4434A |
12.8 |
40W |
1,000 |
Screw Terminals |
C-6 |
5001 |
12.8 |
50W |
SAE Specifications |
2 Contact Lugs |
C-6 |
H5001 |
12.8 |
50W |
SAE Specifications |
2 Contact Lugs |
C-6 |
H7609 |
12.8 |
50W |
2,200 |
Screw Terminals |
C-6 |
H7619 |
12.8 |
50W |
6,000 |
Screw Terminals |
C-6 |
H7621-1 |
12.8 |
50W |
20,000 |
Slip-on Terminals |
C-6 |
H7635 |
12.8 |
50W |
160,000 |
Screw Terminals |
C-6 |
4478 |
13 |
60w |
16,00 |
2 Contact Lugs |
2C-6 |
4421 |
13 |
100W |
23,000 |
Slip-on Terminals |
C-6 |
4636-3 |
14 |
80W |
90,000 |
Combination |
2C-6 |
4578 |
28 |
60W |
1.600 |
2 Contact Lugs |
2C-6 |
4880 |
28 |
60W |
6,000 |
2 Contact Lugs |
2C-6 |
4579 |
28 |
80W |
24,000 |
3 Contact Lugs |
CC-6 |
4571 |
28 |
150W |
7,000 |
Screw Terminals |
CC-6 |
4572 |
28 |
150W |
4.500 |
Screw Terminals |
CC-6 |
4401 |
28 |
40W |
23,000 |
2 Lugs |
CC-6 |
4402 |
HI 28 LO 28 |
40W 60w |
10,000 21,000 |
3 Lugs |
CC-6 CC-6 |
4017 |
5.5 5.5 |
18W 3.8W |
16,000 3,000 |
3 Lugs |
C-6 C-2R |
4020 |
HI 6.4 LO 6.4 |
30W 30W |
25,000 15,000 |
3 Lugs |
C-6 C-6 |
4078 |
6.4 |
35W |
1,500 |
2 Lugs |
C-6 |
4049 |
13 |
150W |
300,000 |
MP |
C-6 |
4459 |
HI12.8 LO 12.8 |
40W 40W |
1,400 1,300 |
MP |
C-6 C-6 |
4431 |
HI12.8 LO 12.8 |
45W 35W |
30,000 16,000 |
3 Lugs |
C-6 C-6 |
4478 |
13 |
60W |
1.600 |
2 Lugs |
C-6 |
4535 |
12.8 |
30W |
90,000 |
Screw Terminals |
C-6 |
PAR56 BULB 178mm(7") DIAMETER |
|||||
6006 |
HI 6.1 LO 6.2 |
50W 40W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
6015 |
HI 12.8 LO 12.8 |
50W 50W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
6014 |
HI 12.8 LO 12.8 |
60W 50W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H5024 |
HI 12.8 LO 12.8 |
65W 42W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H6024 |
HI 12.8 LO 12.8 |
65W 35W |
SAE Specifications |
3 Contact Lugs |
C-6 |
4800 |
HI 28 LO 28 |
50W 40W |
SAE Specifications |
3 Contact Lugs |
CC-6 CC-6 |
7010 |
HI 12.8 LO 12.8 |
75W 50W |
43,000 18,000 |
3 Lugs |
C-6 C-6 |
7019 |
HI 12.8 LO 12.8 |
75W 50W |
43,000 18,000 |
3 Lugs |
C-6 C-6 |
6024 |
HI 28 LO 28 |
75W 55W |
35,000 18,000 |
3 Lugs |
CC-6 CC-6 |
RECTANGULAR 100mm x 165mm(4.2" x 6.5") |
|||||
H4656 |
HI 12.8 LO 12.8 |
35W 35W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
4652 |
HI 12.8 LO 12.8 |
40W 60W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H4656H0 |
HI 12.8 LO 12.8 |
40W 55W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H4656SB (Coated for white Ligh)t |
HI 12.8 LO 12.8 |
40W 55W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H5062 |
HI 12.8 LO 12.8 |
40W 55W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
4651 |
12.8 |
50W |
SAE Specifications |
2 Contact Lugs |
C-6 |
4912-1 |
12.8 |
50W |
14,000 |
Slip-on Terminals |
C-6 |
4913-1 |
12.8 |
50W |
1,350 |
Slip-on Terminals |
C-6 |
H4651 |
12.8 |
50W |
SAE Specifications |
2 Contact Lugs |
C-6 |
H4651SB (Coated for white Ligh)t |
12.8 |
50W |
SAE Specifications |
2 Contact Lugs |
C-6 |
H5051 |
12.8 |
50W |
SAE Specifications |
2 Contact Lugs |
C-6 |
H7921-1 |
12.8 |
50W |
23,900 |
Slip-on Terminals |
C-6 |
H7935-1 |
12.8 |
50W |
17,500 |
Slip-on Terminals |
C-6 |
H4666 |
HI 12.8 LO 12.8 |
65W 55W |
SAE Specifications |
3 Contact Angled |
C-8 C-8 |
H7931HIR |
12.8 |
65W |
4,000 |
2 Contact Lugs |
C-8 |
4921-1 |
13.0 |
100W |
25,000 |
Slip-on Terminals |
C-6 |
6000 |
28 |
55W |
23,000 |
2 Lugs |
CC-6 |
6001 |
HI 28 LO 28 |
50W 60W |
10,000 20,000 |
3 Lugs |
CC-6 CC-6 |
H4652 |
HI 12.8 LO 12.8 |
40W 60W |
15,000 25,000 |
3 Lugs |
CC-6 CC-6 |
RECTANGULAR 142mm x 200mm(5.6" x 7.9 ") |
|||||
6052 |
HI 12.8 LO 12.8 |
65W 55W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H5054 |
HI 12.8 LO 12.8 |
65W 42W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H6054 |
HI 12.8 LO 12.8 |
65W 35W |
SAE Specifications |
3 Contact Lugs |
C-6 C-6 |
H6054HO |
HI 12.8 LO 12.8 |
65W 55W |
SAE Specifications |
3 Contact Lugs |
C-8 C-8 |
H6054SB |
HI 12.8 LO 12.8 |
65W 55W |
SAE Specifications |
3 Contact Lugs |
C-8 C-8 |
6002 |
HI 12.8 LO 12.8 |
85W 65W |
35,000 20,000 |
3 Lugs |
C-6 C-6 |
| Genaral Semi Sealed Beam | ||
 |
ITSB0011/ ITSB0012 |  |
| Body: Metal | ||
| Bulb: H4 P43T H1 | ||
| Dim: 5 3/4" , 7" | ||
| Lens Color: Clear,Yellow,Blue | ||
 |
ITSB0013/ ITSB0014 |  |
| Body: Metal | ||
| Bulb: H4 P43T H1 | ||
| Dim: 4"x6" , 6 "X8" | ||
| Lens Color: Clear,Yellow,Blue | ||
| CRYSTAL SEMI SEALED BEAM | ||
 |
ITSB0015/ ITSB0016 | |
| Body: Metal | ||
| Bulb: H4 P43T H1 | ||
| Dim: 5 3/4" , 7" | ||
| Lens Color: Clear,Yellow,Blue | ||
 |
ITSB0017/ ITSB0018 | |
| Body: Metal | ||
| Bulb: H4 P43T H1 | ||
| Dim: 5 3/4" , 7" | ||
| Lens Color: Clear,Yellow,Blue | ||
SUN LAMP |
||
 |
ITSB0019/ ITSB0020 |  |
| Body: Metal | ||
| Bulb: H3 | ||
| Dim: 90mm,115mm | ||
| Lens Color: Clear,Yellow,Blue | ||
