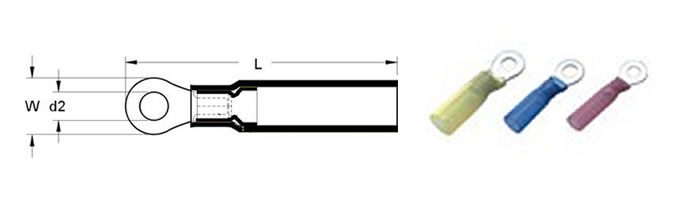

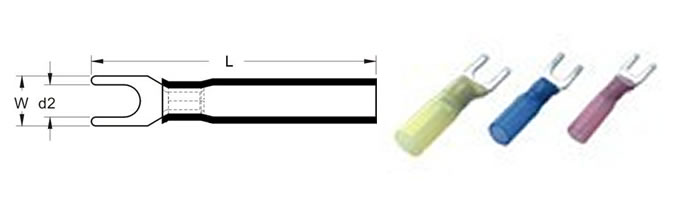

WIRE TERMINAL
 |
|||||
| MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX. TERMINAL MATERIAL: COPPER INSULATION MATERIAL: HIGH DENSITY PE. WITH COPPER SLEEVE ON BARREL |
|||||
| CABLE SIZE | ITEM NO. | d2 | W(Inch/mm) | L(Inch/mm) | INSULATED COLOR |
| 22-16 AWG |
RHD1-3.2 | #4 | 0.217 | 1.161 | RED |
| 5.5 | 29.5 | ||||
| RHDS1-3.7 | #6 | 0.217 | 1.201 | ||
| 5.5 | 30.5 | ||||
| RHDM1-3.7 | #6 | 0.26 | 1.236 | ||
| 6.6 | 31.4 | ||||
| RHDL1-3.7 | #6 | 0.315 | 1.291 | ||
| 8 | 32.8 | ||||
| RHDS1-4 | #8 | 0.26 | 1.236 | ||
| 6.6 | 31.4 | ||||
| RHDL1-4 | #8 | 0.315 | 1.291 | ||
| 8 | 32.8 | ||||
| RHD1-5 | #10 | 0.315 | 1.291 | ||
| 8 | 32.8 | ||||
| RHD1-6 | 1/4 | 0.457 | 1.496 | ||
| 11.6 | 38 | ||||
| RHD1-8 | 5/16 | 0.457 | 1.496 | ||
| 11.6 | 38 | ||||
| RHD1-10 | 3/8 | 0.535 | 1.638 | ||
| 13.6 | 41.6 | ||||
| 16-14 AWG | RHD2-3.2 | #4 | 0.26 | 1.134 | BLUE |
| 6.6 | 28.8 | ||||
| RHDS2-3.7 | #6 | 0.26 | 1.22 | ||
| 6.6 | 31 | ||||
| RHDM2-3.7 | #6 | 0.26 | 1.197 | ||
| 6.6 | 30.4 | ||||
| RHDL2-3.7 | #6 | 0.335 | 1.291 | ||
| 8.5 | 32.8 | ||||
| RHDL2-4 | #8 | 0.335 | 1.291 | ||
| 8.5 | 32.8 | ||||
| RHDS2-4 | #8 | 0.26 | 1.197 | ||
| 6.6 | 30.4 | ||||
| RHDS2-5 | #10 | 0.335 | 1.291 | ||
| 8.5 | 32.8 | ||||
| RHDL2-5 | #10 | 0.374 | 1.252 | ||
| 9.5 | 31.8 | ||||
| RHD2-6 | 1/4 | 0.472 | 1.476 | ||
| 12 | 37.5 | ||||
| RHD2-8 | 5/16 | 0.472 | 1.417 | ||
| 12 | 36 | ||||
| RHD2-10 | 3/8 | 0.535 | 1.583 | ||
| 13.6 | 40.2 | ||||
| RHDL2-10 | 1/2 | 0.756 | 1.835 | ||
| 19.2 | 46.6 | ||||
| RHD2-12 | 1/2 | 0.756 | 1.827 | ||
| 19.2 | 46.4 | ||||
| 12-10 AWG | RHD5-3.7 | #6 | 0.283 | 1.339 | YELLOW |
| 7.2 | 34 | ||||
| RHDL5-3.7 | #6 | 0.374 | 1.465 | ||
| 9.5 | 37.2 | ||||
| RHDS5-4 | #8 | 0.283 | 1.335 | ||
| 7.2 | 33.9 | ||||
| RHDL5-4 | #8 | 0.374 | 1.449 | ||
| 9.5 | 36.8 | ||||
| RHD5-5 | #10 | 0.374 | 1.449 | ||
| 9.5 | 36.8 | ||||
| RHD5-6 | 1/4 | 0.472 | 1.551 | ||
| 12 | 39.4 | ||||
| RHD5-8 | 5/16 | 0.591 | 1.732 | ||
| 15 | 44 | ||||
| RHD5-10 | 3/8 | 0.591 | 1.732 | ||
| 15 | 44 | ||||
| RHD5-12 | 1/2 | 0.756 | 1.937 | ||
| 19.2 | 49.2 | ||||
 |
|||||

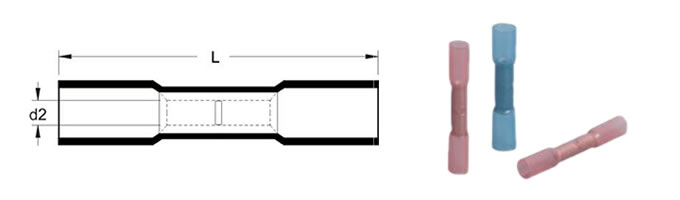

MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX. TERMINAL MATERIAL: COPPER INSULATION MATERIAL: HIGH DENSITY PE. WITH COPPER SLEEVE ON BARREL |
|||||
CABLE SIZE |
ITEM NO. |
d2 |
W(Inch/mm) |
L(Inch/mm) |
INSULATED COLOR |
22-16 AWG |
SHB1-3.2 |
#4 |
0.224 |
1.122 |
RED |
3.2 |
5.7 |
28.5 |
|||
SHBS1-3.7 |
#6 |
0.224 |
1.122 |
||
3.7 |
5.7 |
28.5 |
|||
SHBS1-4 |
#8 |
0.252 |
1.122 |
||
4.3 |
6.4 |
28.5 |
|||
SHBM1-4 |
#8 |
0.283 |
1.165 |
||
4.3 |
7.2 |
29.6 |
|||
SHBL1-4 |
#8 |
0.319 |
1.122 |
||
4.3 |
8.1 |
28.5 |
|||
SHBS1-5 |
#10 |
0.319 |
1.122 |
||
5.3 |
8.1 |
28.5 |
|||
SHBL1-5 |
#10 |
0.374 |
1.181 |
||
5.3 |
9.5 |
30 |
|||
SHBS1-6 |
1/4 |
0.374 |
1.122 |
||
6.4 |
9.5 |
28.5 |
|||
SHBL1-6 |
1/4 |
0.472 |
1.358 |
||
6.4 |
12 |
34.5 |
|||
16-14 AWG |
SHB2-3.2 |
#4 |
0.224 |
1.122 |
BLUE |
3.2 |
5.7 |
28.5 |
|||
SHB2-3.7 |
#6 |
0.224 |
1.122 |
||
3.7 |
5.7 |
28.5 |
|||
SHBS2-4 |
#8 |
0.252 |
1.122 |
||
4.3 |
6.4 |
28.5 |
|||
SHBM2-4 |
#8 |
0.283 |
1.161 |
||
4.3 |
7.2 |
29.5 |
|||
SHBL2-4 |
#8 |
0.311 |
1.122 |
||
4.3 |
7.9 |
28.5 |
|||
SHBS2-5 |
#10 |
0.311 |
1.122 |
||
5.3 |
7.9 |
28.5 |
|||
SHBL2-5 |
#10 |
0.366 |
1.201 |
||
5.3 |
9.3 |
30.5 |
|||
SHBS2-6 |
1/4 |
0.366 |
1.122 |
||
6.4 |
9.3 |
28.5 |
|||
SHBL2-6 |
1/4 |
0.472 |
1.358 |
||
6.4 |
12 |
34.5 |
|||
12-10 AWG |
SHB5-3.7 |
#6 |
0.327 |
1.004 |
YELLOW |
3.7 |
8.3 |
25.5 |
|||
SHBS5-4 |
#8 |
0.327 |
1.004 |
||
4.3 |
8.3 |
25.5 |
|||
SHBL5-4 |
#6 |
0.354 |
1.319 |
||
4.3 |
9 |
33.5 |
|||
SHB5-5 |
#10 |
0.354 |
1.319 |
||
5.3 |
9 |
33.5 |
|||
SHBS5-6 |
1/4 |
0.354 |
1.004 |
||
6.4 |
9 |
25.5 |
|||
SHBL5-6 |
1/4 |
0.472 |
1.614 |
||
6.4 |
12 |
41 |
|||
SHB5-8 |
5/16 |
0.551 |
1.201 |
||
8.4 |
14 |

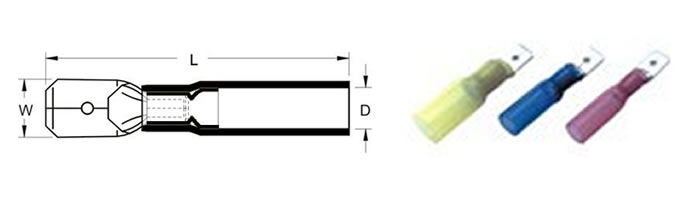

30.5 |
|||
|
||||||

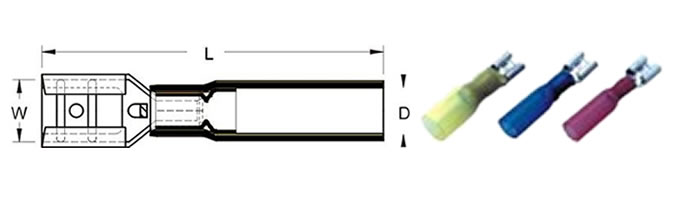

MAXIMUM ELECTRICAL RATING: 300 V TERMINAL MATERIAL: BRASS INSULATION MATERIAL: HIGH DENSITY PE. WITH COPPER SLEEVE ON BARREL |
||||||
CABLE SIZE |
ITEM NO. |
NEMA TAB |
DIMENSION inch(mm) |
INSULATED COLOR |
||
W |
D |
L |
||||
22-16 A.W.G 0.5-1.5mm2 |
FDHD1-250 |
0.032X0.250 0.8X6.35 |
0.26 |
0.217 |
1.339 |
RED |
6.6 |
5.5 |
34 |
||||
16-14 A.W.G 1.5-2.5mm2 |
FDHD2-250 |
0.032X0.250 0.8X6.35 |
0.26 |
0.236 |
1.339 |
BLUE |
6.6 |
6 |
34 |
||||
12-10 A.W.G 4-6mm2 |
FDHD5-250 |
0.032X0.250 0.8X6.35 |
0.26 |
0.319 |
1.378 |
YELLOW |
6.6 |
8.1 |
35 |
||||
|
||||||
MAXIMUM ELECTRICAL RATING: 300 VOLTS MAX. TERMINAL MATERIAL: BRASS INSULATION MATERIAL: HIGH DENSITY PE. WITH COPPER SLEEVE ON BARREL |
||||||
CABLE SIZE |
ITEM NO. |
NEMA TAB |
DIMENSION inch(mm) |
INSULATED COLOR |
||
W |
D |
L |
||||
22-16 A.W.G (0.5-1.5mm2) |
MDHD1-250 |
0.032X0.250 |
0.25 |
0.217 |
1.339 |
RED |
0.8X6.35 |
6.35 |
5.5 |
34 |
|||
16-14 A.W.G (1.5-2.5mm2) |
MDHD2-250 |
0.032X0.250 |
0.25 |
0.236 |
1.339 |
BLUE |
0.8X6.35 |
6.35 |
6 |
34 |
|||
12-10 A.W.G (4-6mm2) |
MDHD5-250 |
0.032X0.250 |
0.25 |
0.319 |
1.378 |
YELLOW |
0.8X6.35 |
6.35 |
8.1 |
35 |
|||
 |
|||||
| MAXIMUM ELECTRICAL RATING: 300 V TERMINAL MATERIAL: BRASS INSULATION MATERIAL: HIGH DENSITY PE. WITH COPPER SLEEVE ON BARREL |
|||||
| CABLE SIZE | ITEM NO. | DIMENSION inch(mm) | INSULATED COLOR | ||
| W | D | L | |||
| 22-16 A.W.G (0.5-1.5mm2) |
MPHD1-156 | 0.157 | 0.217 | 1.299 | RED |
| 4 | 5.5 | 33 | |||
| 16-14 A.W.G (1.5-2.5mm2) |
MPHD2-156 | 0.157 | 0.236 | 1.299 | BLUE |
| 4 | 6 | 33 | |||
| 16-14 A.W.G (1.5-2.5mm2) |
MPHD2-195 | 0.197 | 0.236 | 1.299 | BLUE |
| 5 | 6 | 33 | |||
| 12-10 A.W.G (4-6mm2) |
MPHD5-195 | 0.197 | 0.319 | 1.398 | YELLOW |
| 5 | 8.1 | 35.5 | |||
 |
|||||

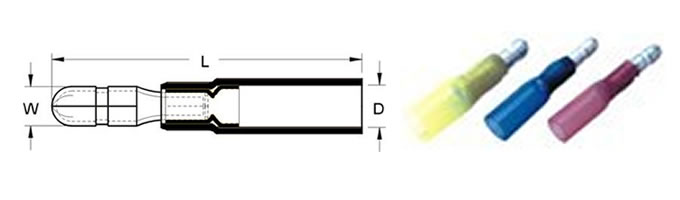

| MAXIMUM ELECTRICAL RATING: 300 V TERMINAL MATERIAL: BRASS INSULATION MATERIAL: HIGH DENSITY PE. WITH COPPER SLEEVE ON BARREL |
|||||
| ITEM NO. | Cable size | Dimension(mm) | Color | ||
| A.W.G | mm2 | dφ | L | ||
| BHT1.25 | 22-16 | 0.5-1.5 | 1.7 | 36 | red |
| BHT2 | 16-14 | 1.5-2.5 | 2.3 | 36 | blue |
| BHT5.5 | 12-10 | 4_6 | 3.4 | 41 | yellow |
 |
||||
| Max current：22-18 A.W.G 10A 18-14 A.W.G 15A 12-10 A.W.G 24 Max voltage：105℃ 600V Material: copper Insulating material：P.P | ||||

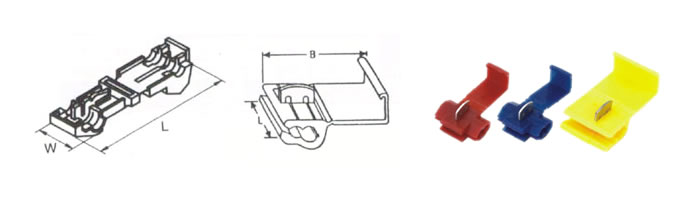

Item No |
Dimension (mm) |
cable size ( mm2) |
Color |
|
W |
L |
|||
KW-1 |
8.5 |
37.5 |
22-18 A.W.G
(0.5-1.0mm2) |
red |
KW-2 |
8.5 |
37.5 |
18-14 A.W.G
(0.75-2.5mm2) |
blue |
KW-3 |
8.5 |
37.5 |
12-10 A.W.G
(4-6mm2) |
yellow |
Item No
|
Dimension (mm) |
cable size ( mm2) |
Color |
|
B |
L |
|||
KW-4 |
20 |
20 |
22-18 A.W.G
(0.5-1.0mm2) |
red |
KW-5 |
20 |
20 |
18-14 A.W.G
(0.75-2.5mm2) |
blue |
KW-6 |
21 |
21 |
12-10 A.W.G
(4-6mm2) |
yellow |
 |
|||||

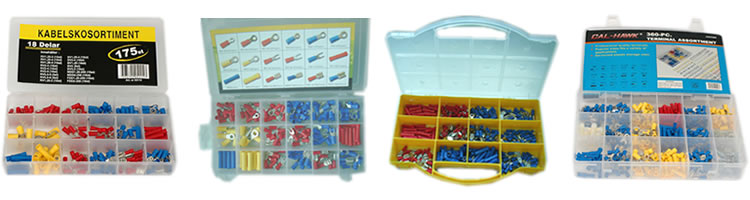

IT-175 175PCS 18TYPE ASSORTMENT |
|||||
ITEM NO. |
QTY |
ITEM NO. |
QTY |
ITEM NO. |
QTY |
RV1.25-3 |
15 |
RV5.5-5 |
5 |
BV2 |
10 |
RV1.25-4 |
10 |
RV5.5-6 |
5 |
BV5 |
5 |
RV1.25-5 |
10 |
SV1.25-3 |
10 |
MDD1.25-250 |
10 |
RV2-3 |
15 |
SV1.25-4 |
10 |
MDD2-250 |
10 |
RV2-4 |
10 |
SV2-4 |
10 |
FDD1.25-250 |
10 |
RV2-5 |
10 |
BV1.25 |
10 |
FDD2-250 |
10 |
IT-180 180PCS 18TYPE ASSORTMENT |
|||||
ITEM NO. |
QTY |
ITEM NO. |
QTY |
ITEM NO. |
QTY |
FRD2-195 |
10 |
RV5.5-4 |
5 |
BV5.5 |
5 |
FRD1-156 |
10 |
RV2-4 |
15 |
BV2 |
10 |
MPD2-195 |
10 |
RV1.25-4 |
15 |
BV1.25 |
10 |
MPD1-156 |
10 |
SV5.5-4 |
5 |
FDD2-250 |
10 |
MDD2-250 |
10 |
SV2-4 |
10 |
FDD1-250 |
10 |
MDD1-250 |
10 |
SV1.25-4 |
15 |
FDD1-110 |
10 |
IT-300 300PCS 12TYPE ASSORTMENT
|
|||||
ITEM NO. |
QTY |
ITEM NO. |
QTY |
ITEM NO. |
QTY |
FDD1.25-250 |
25 |
PBDD1.25-250 |
25 |
FRD1.25-156 |
25 |
FDD2-250 |
25 |
PBDD2-250 |
25 |
FRD2-156 |
25 |
MDD1.25-250 |
25 |
BV1.25 |
25 |
MPD1.25-156 |
25 |
MDD2-250 |
25 |
BV2 |
25 |
MPD2-156 |
25 |
IT-360 360PCS 18TYPE ASSORTMENT |
|||||
ITEM NO. |
QTY |
ITEM NO. |
QTY |
ITEM NO. |
QTY |
MPD2-156 |
25 |
RV2-6 |
20 |
BV5.5 |
15 |
FRD2-156 |
10 |
RV5.5-6 |
15 |
BV8(Nylon) |
10 |
RV2-5 |
30 |
SV2-5 |
30 |
MDD2-250 |
25 |
RV2-10 |
20 |
SV5.5-5 |
20 |
FDD2-250 |
25 |
RV5.5-5 |
20 |
BV2 |
30 |
MDMNY2-250 |
10 |
RV5.5-10 |
15 |
BV1.25 |
30 |
FDFNY2-250 |
10 |
